IP stands for Internet Protocol and v4 stands for Version Four (IPv4). IPv4 was the primary version brought into action for production within the ARPANET in 1983.
IP version four addresses are 32-bit integers which will be expressed in decimal notation.
Example- 192.0.2.126 could be an IPv4 address.
Parts of IPv4
- Network part:
The network part indicates the distinctive variety that’s appointed to the network. The network part conjointly identifies the category of the network that’s assigned. - Host Part:
The host part uniquely identifies the machine on your network. This part of the IPv4 address is assigned to every host.
For each host on the network, the network part is the same, however, the host half must vary. - Subnet number:
This is the nonobligatory part of IPv4. Local networks that have massive numbers of hosts are divided into subnets and subnet numbers are appointed to that.
Characteristics of IPv4
- IPv4 could be a 32-Bit IP Address.
- IPv4 could be a numeric address, and its bits are separated by a dot.
- The number of header fields is twelve and the length of the header field is twenty.
- It has Unicast, broadcast, and multicast style of addresses.
- IPv4 supports VLSM (Virtual Length Subnet Mask).
- IPv4 uses the Post Address Resolution Protocol to map to the MAC address.
- RIP may be a routing protocol supported by the routed daemon.
- Networks ought to be designed either manually or with DHCP.
- Packet fragmentation permits from routers and causing host.
Advantages of IPv4
- IPv4 security permits encryption to keep up privacy and security.
- IPV4 network allocation is significant and presently has quite 85000 practical routers.
- It becomes easy to attach multiple devices across an outsized network while not NAT.
- This is a model of communication so provides quality service also as economical knowledge transfer.
- IPV4 addresses are redefined and permit flawless encoding.
- Routing is a lot of scalable and economical as a result of addressing is collective more effectively.
- Data communication across the network becomes a lot of specific in multicast organizations.
- Limits net growth for existing users and hinders the use of the net for brand new users.
- Internet Routing is inefficient in IPv4.
- IPv4 has high System Management prices and it’s labor-intensive, complex, slow & frequent to errors.
- Security features are nonobligatory.
- Difficult to feature support for future desires as a result of adding it on is extremely high overhead since it hinders the flexibility to attach everything over IP.
Limitations of IPv4
- IP relies on network layer addresses to identify end-points on network, and each network has a unique IP address.
- The world’s supply of unique IP addresses is dwindling, and they might eventually run out theoretically.
- If there are multiple host, we need IP addresses of next class.
- Complex host and routing configuration, non-hierarchical addressing, difficult to re-numbering addresses, large routing tables, non-trivial implementations in providing security, QoS (Quality of Service), mobility and multi-homing, multicasting etc. are the big limitation of IPv4 so that’s why IPv6 came into the picture.
IPv4 addressing
IPv4 supports three different types of addressing modes. −
Unicast Addressing Mode

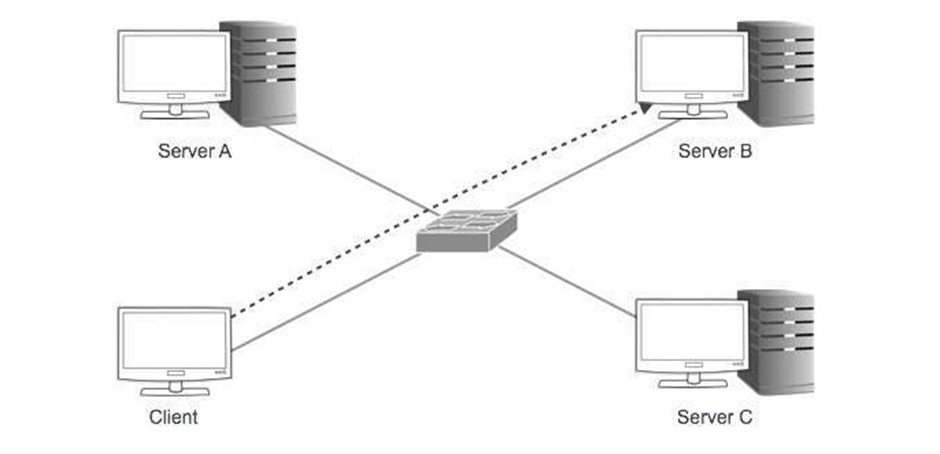

In this mode, data is sent only to one destined host. The Destination Address field contains 32- bit IP address of the destination host. Here the client sends data to the targeted server −
Broadcast Addressing Mode
In this mode, the packet is addressed to all the hosts in a network segment. The Destination Address field contains a special broadcast address, i.e. 255.255.255.255. When a host sees this packet on the network, it is bound to process it. Here the client sends a packet, which is entertained by all the Servers −
Multicast Addressing Mode
This mode is a mix of the previous two modes, i.e. the packet sent is neither destined to a single host nor all the hosts on the segment. In this packet, the Destination Address contains a special address which starts with 224.x.x.x and can be entertained by more than one host.
Here a server sends packets which are entertained by more than one servers. Every network has one IP address reserved for the Network Number which represents the network and one IP address reserved for the Broadcast Address, which represents all the hosts in that network.
Hierarchical Addressing Scheme
IPv4 uses hierarchical addressing scheme. An IP address, which is 32-bits in length, is divided into two or three parts as depicted −
A single IP address can contain information about the network and its sub-network and ultimately the host. This scheme enables the IP Address to be hierarchical where a network can have many sub-networks which in turn can have many hosts.
Subnet Mask
The 32-bit IP address contains information about the host and its network. It is very necessary to distinguish both. For this, routers use Subnet Mask, which is as long as the size of the network address in the IP address. Subnet Mask is also 32 bits long. If the IP address in binary is ANDed with its Subnet Mask, the result yields the Network address. For example, say the IP Address is 192.168.1.152 and the Subnet Mask is 255.255.255.0 then −
This way the Subnet Mask helps extract the Network ID and the Host from an IP Address. It can be identified now that 192.168.1.0 is the Network number and 192.168.1.152 is the host on that network.
Binary Representation
The positional value method is the simplest form of converting binary from decimal value. IP address is 32 bit value which is divided into 4 octets. A binary octet contains 8 bits and the value of each bit can be determined by the position of bit value ‘1’ in the octet.
Positional value of bits is determined by 2 raised to power (position – 1), that is the value of a bit 1 at position 6 is 2^(6-1) that is 2^5 that is 32. The total value of the octet is determined by adding up the positional value of bits. The value of 11000000 is 128+64 = 192. Some examples are shown in the table below –
classful addressing
The 32 bit IP address is divided into five sub-classes. These are:
- Class A
- Class B
- Class C
- Class D
- Class E
Each of these classes has a valid range of IP addresses. Classes D and E are reserved for multicast and experimental purposes respectively. The order of bits in the first octet determine the classes of IP address.
IPv4 address is divided into two parts:
- Network ID
- Host ID
The class of IP address is used to determine the bits used for network ID and host ID and the number of total networks and hosts possible in that particular class. Each ISP or network administrator assigns IP address to each device that is connected to its network.
Note: IP addresses are globally managed by Internet Assigned Numbers Authority(IANA) and regional Internet registries(RIR).
Note: While finding the total number of host IP addresses, 2 IP addresses are not counted and are therefore, decreased from the total count because the first IP address of any network is the network number and whereas the last IP address is reserved for broadcast IP.
IP address belonging to class A are assigned to the networks that contain a large number of hosts.
- The network ID is 8 bits long.
- The host ID is 24 bits long.
The higher order bit of the first octet in class A is always set to 0. The remaining 7 bits in first octet are used to determine network ID. The 24 bits of host ID are used to determine the host in any network. The default subnet mask for class A is 255.x.x.x. Therefore, class A has a total of:
- 2^7-2= 126 network ID(Here 2 address is subtracted because 0.0.0.0 and 127.x.y.z are special address. )
- 2^24 – 2 = 16,777,214 host ID
IP addresses belonging to class A ranges from 1.x.x.x – 126.x.x.x
Class B:
IP address belonging to class B are assigned to the networks that ranges from medium-sized to large-sized networks.
- The network ID is 16 bits long.
- The host ID is 16 bits long.
The higher order bits of the first octet of IP addresses of class B are always set to 10. The remaining 14 bits are used to determine network ID. The 16 bits of host ID is used to determine the host in any network. The default sub-net mask for class B is 255.255.x.x. Class B has a total of:
- 2^14 = 16384 network address
- 2^16 – 2 = 65534 host address
IP addresses belonging to class B ranges from 128.0.x.x – 191.255.x.x.
Class C:
IP address belonging to class C are assigned to small-sized networks.
- The network ID is 24 bits long.
- The host ID is 8 bits long.
The higher order bits of the first octet of IP addresses of class C are always set to 110. The remaining 21 bits are used to determine network ID. The 8 bits of host ID is used to determine the host in any network. The default sub-net mask for class C is 255.255.255.x. Class C has a total of:
- 2^21 = 2097152 network address
- 2^8 – 2 = 254 host address
IP addresses belonging to class C ranges from 192.0.0.x – 223.255.255.x.
Class D:
IP address belonging to class D are reserved for multi-casting. The higher order bits of the first octet of IP addresses belonging to class D are always set to 1110. The remaining bits are for the address that interested hosts recognize.
Class D does not posses any sub-net mask. IP addresses belonging to class D ranges from 224.0.0.0 – 239.255.255.255.
Class E:
IP addresses belonging to class E are reserved for experimental and research purposes. IP addresses of class E ranges from 240.0.0.0 – 255.255.255.254. This class doesn’t have any sub-net mask. The higher order bits of first octet of class E are always set to 1111.
Range of special IP addresses:
169.254.0.0 – 169.254.0.16 : Link local addresses
127.0.0.0 – 127.0.0.8 : Loop-back addresses
0.0.0.0 – 0.0.0.8 : used to communicate within the current network.
Rules for assigning Host ID:
Host ID’s are used to identify a host within a network. The host ID are assigned based on the following rules:
- Within any network, the host ID must be unique to that network.
- Host ID in which all bits are set to 0 cannot be assigned because this host ID is used to represent the network ID of the IP address.
- Host ID in which all bits are set to 1 cannot be assigned because this host ID is reserved as a broadcast address to send packets to all the hosts present on that particular network.
Rules for assigning Network ID:
Hosts that are located on the same physical network are identified by the network ID, as all host on the same physical network is assigned the same network ID. The network ID is assigned based on the following rules:
- The network ID cannot start with 127 because 127 belongs to class A address and is reserved for internal loop-back functions.
- All bits of network ID set to 1 are reserved for use as an IP broadcast address and therefore, cannot be used.
- All bits of network ID set to 0 are used to denote a specific host on the local network and are not routed and therefore, aren’t used.
Summary of Classful addressing :
Problems with Classful Addressing:
The problem with this classful addressing method is that millions of class A address are wasted, many of the class B address are wasted, whereas, number of addresses available in class C is so small that it cannot cater the needs of organizations. Class D addresses are used for multicast routing and are therefore available as a single block only. Class E addresses are reserved.
Since there are these problems, Classful networking was replaced by Classless Inter-Domain Routing (CIDR) in 1993. We will be discussing Classless addressing in next post.
